Gypsum Board Ceiling Tile Cutting, Edge Sealing, Packaging Machine for Lamination Line

Product description

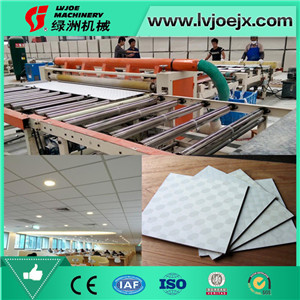

This equipment is used to cut the laminated calcium silicate board/ gypsum board/ mgo board from 4'*8' to 2'*2' according to the decorative specification.

First, put the boards on the conveying rollers, then go to the first cutting device. After passing the second cutting device, the board will be formed.

It consists of slitting and crossing-cutting automatic cutting  equipment, equipped with the dust exhausting system. In the process of cutting, the electric impulse style dust collector recycles the dust, reaching the purpose of the dust exhausting efficiently.

Technical Parameters:

Product name: cutting machine

Size of finished board: 300*300, 595*595, 603*603, 600*600, 400*600 mm  etc

Cutting speed: 15m/min

Cutting knife: three in portrait, five in lateral

Overall power: 17.15KW

Speed regulation: frequency conversion synchronous speed regulating
